[Cold Forging]Simulation of a helical gear forging process

Forging > Closed Die Forging without Flash

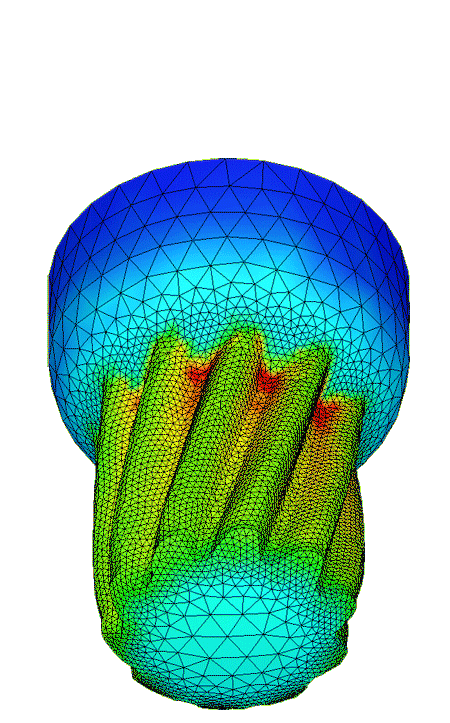

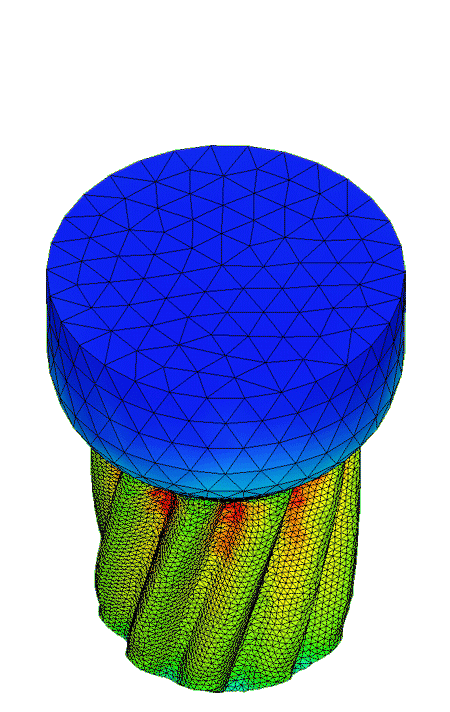

A helical gear forging process, a special forward extrusion process, was simulated using the intelligent remeshing function. Effective strain and the mesh system were shown in the figure and animation.
