Simulation considering die deformation

This figures simulated a scroll forging process under rigid-die or elastic-die assumptions to reveal the die fracture occurring at the root of wrap.

The major reason of the fracture lies in the unbalanced filling of material between the wraps. As a whole the effect of the elastic-die is negligible.

From more detailed observation, however, we can find that a little earlier fracture occurred for the elastic-die. From this figure, the width increase of the die cavity in the left side is a little greater than that of the right side, which caused the difference in fracture time.

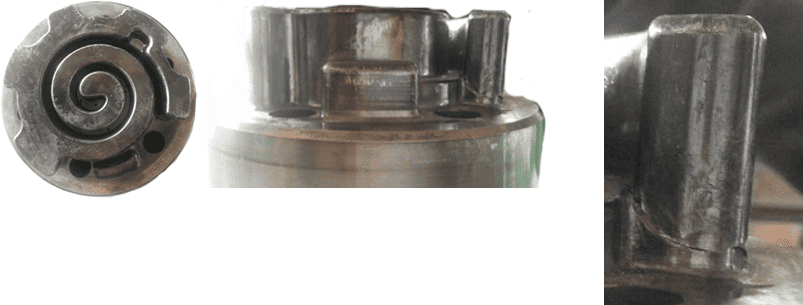

– Fractured die

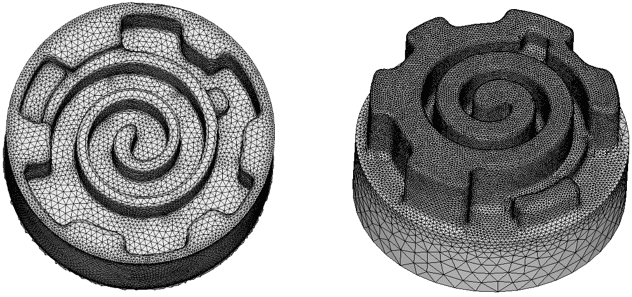

– Mesh System –

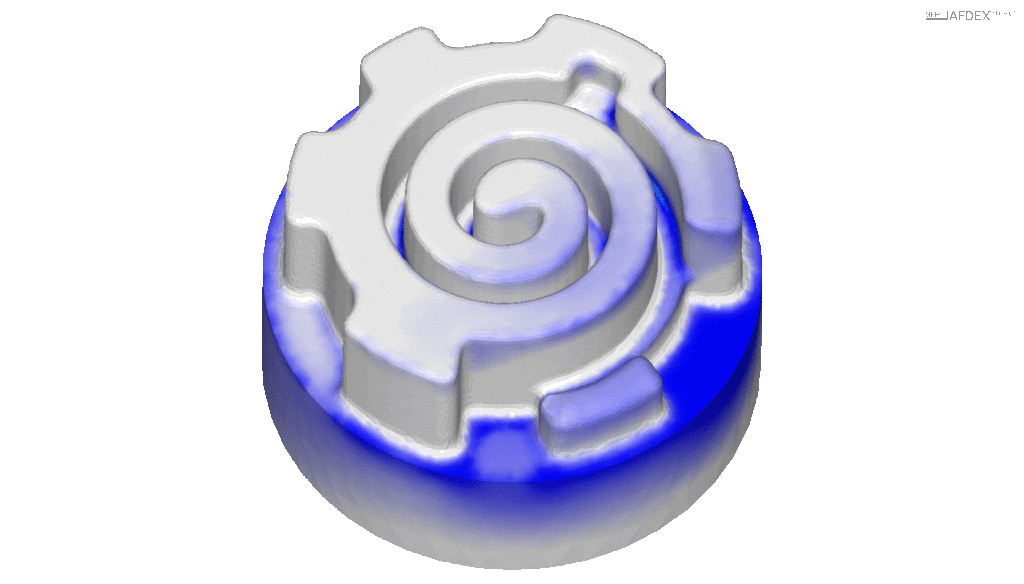

– Metal flow line –

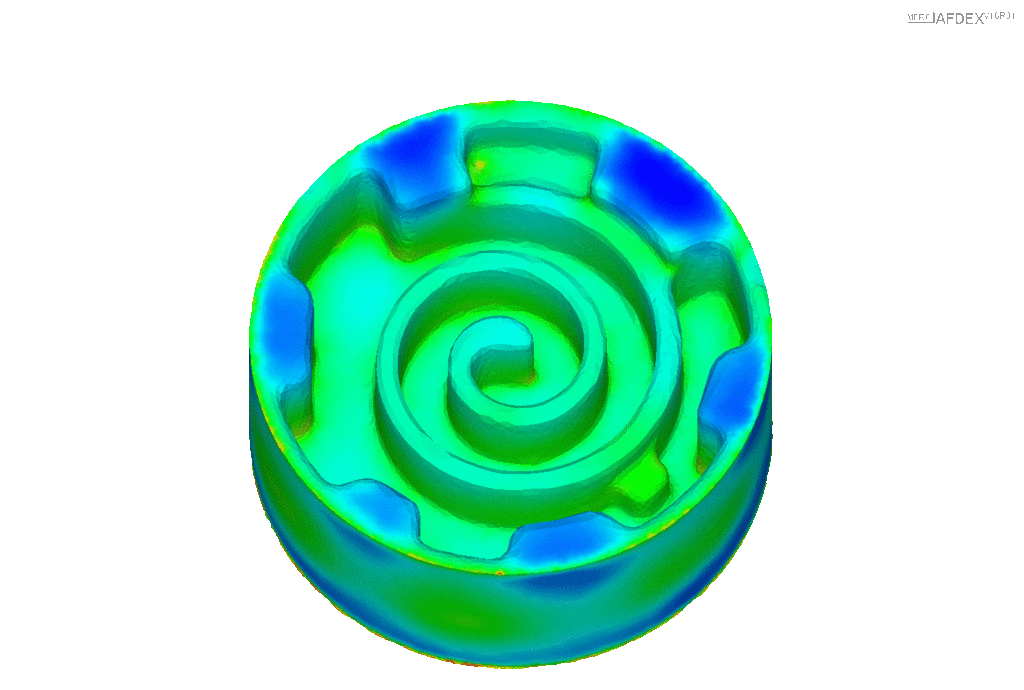

– Effective strain

– Distribution of σyy

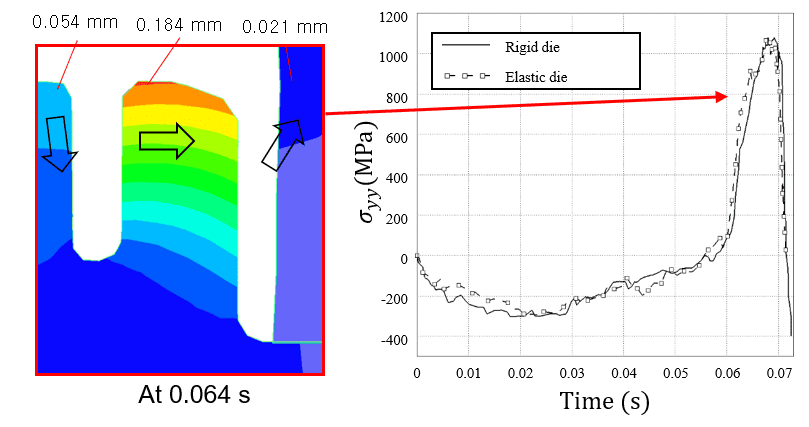

– Die displacement | Stress component σyy –
